The Ciel Tower: When “Can’t” Simply Isn’t in Your Vocabulary
30 April 2025
Imagine the challenges of building a 1,227-foot-tall (374m) tower on a lot the size of a postage stamp, overshadowed by surrounding skyscrapers. There’s barely enough room to swing a cat, let alone maneuver massive cranes, construction equipment and mountains of materials.
Imagine that the lot is triangular, bordered by an inaccessible freeway on one side and water on the other, leaving only a single narrow roadway for vehicle and equipment access.
Now, imagine that despite all these constraints, you simply refuse to entertain the idea that it can’t be done. Instead, you knuckle down, pull it off and build the tallest hotel in the world — a gracefully gleaming addition to Dubai’s dramatic skyline — all on an inaccessible postage stamp of desert dirt.
The use of BIM, digital twins and other digital technologies for project planning, coordination and execution contributed to the Ciel’s success.

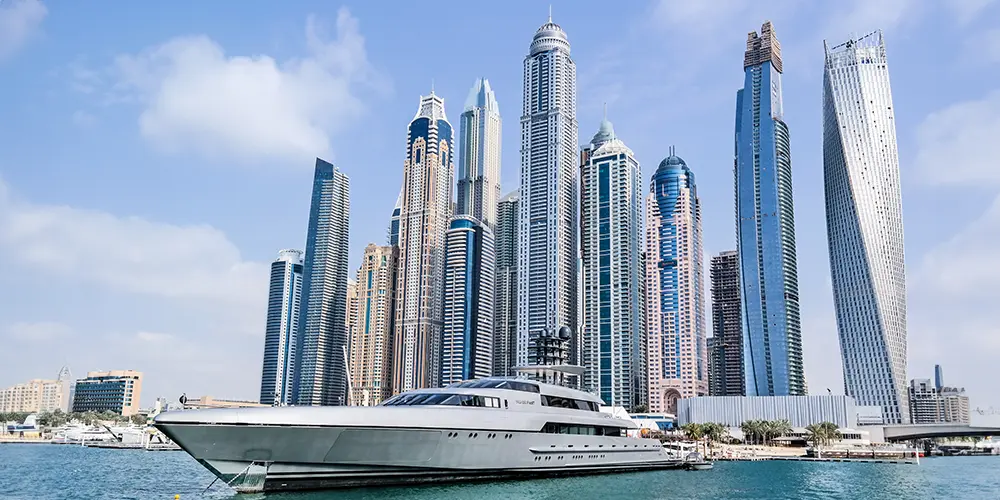

Located in the Dubai Marina, this 82-story skyscraping achievement is named the Ciel Tower. Why “Ciel”? Simple: It’s French for “sky.” Poetically perfect.

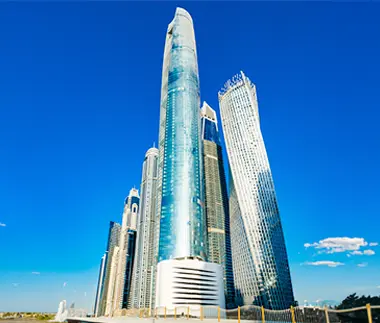

Climbing Into the Big Blue
The 1.1-million-square-foot (103,000m²) Ciel Tower is an excellent case study in human perseverance for the AEC (Architecture, Engineering and Construction) industry. From its unusual architecture to its complex logistical challenges, the Ciel offers valuable lessons for any professional seeking to push the boundaries of what’s possible.
Designed by architect Yahya Jan, the Ciel Tower will offer 1,042 guest rooms, including 150 luxury suites. “When we started the design effort on Ciel, it wasn’t to construct the tallest hotel,” said Jan from his studio in Dubai. “However, during the design process, over the course of four or five months, as we added atrium gardens and a tower top visitors’ observation deck, we realized that we were fast becoming the tallest hotel in the world.”
“Over a two-year period, we produced thousands of hand sketches that tested ideas and refined concepts for the tower. In our 3D printing lab, we made hundreds of models and prototypes. We studied the influence of wind in shaping the tower and the need to bend glass for the exterior envelope of the building. The fact is the design of super-tall buildings, towers over 300 meters in height, is complex. For these types of buildings, clearly defined guiding principles in engineering and architecture are needed to ensure the result is true to the concept,” explains Jan.
The Ciel’s sleek, curvilinear form maximizes panoramic views while also minimizing wind resistance, a critical consideration for a structure of this height. The building’s façade — a shimmering shell of glass and metal — reflects the vibrant cityscape of the Dubai Marina while creating an iconic silhouette against the sky.
Construction was completed in December 2024. Next comes a frantic flurry of paint, fixtures, fittings and furnishings — and a veritable ocean of towels and bed linens — as the hotel is scheduled to open in late 2025.
For AEC professionals, the Ciel Tower’s design highlights the importance of:
- Integrated Design: The smooth integration of architectural vision, structural engineering and MEP systems was paramount. The tower’s form, for instance, directly influenced its structural stability and energy efficiency.
- Contextual Considerations: Understanding the site’s microclimate, wind patterns and surrounding urban area was crucial for creating a sustainable and harmonious building.
- Aesthetic Innovation: Pushing the boundaries of architectural expression while maintaining functionality and structural integrity has become a hallmark of groundbreaking projects.
Imagine the challenges of building a 1,227-foot-tall (374m) tower on a lot the size of a postage stamp.
Engineering the Impossible
Building a skyscraper of this height presented formidable engineering challenges. The Ciel Tower’s structural system — a reinforced concrete core with outrigger trusses and perimeter columns — was designed to withstand extreme wind loads and seismic activity. This hybrid system provided the necessary rigidity and stability while optimizing material usage.
Other attention-worthy engineering aspects are:
Advanced Structural Analysis:
- Finite element analysis (FEA) was crucial in modeling the complex structural behavior under various load scenarios, including wind speeds exceeding 100 miles per hour (160 km/h).
- The concrete core was designed to withstand compressive strengths exceeding 11,600 psi (80 MPa).
High-Strength Materials:
- The use of high-strength steel with yield strengths over 67,000 psi (460 MPa) allowed for slender structural elements, reduced material consumption and maximized usable floor space.
- Anchored into Dubai’s bedrock, the foundation alone contains over 420,000 cubic feet (around 12,000 cubic meters) of concrete and more than 3,000 tons of steel.
Going Up… or Down:
- The elevator system features high-speed elevators capable of traveling at speeds of up to 1,600 feet (488 meters) per minute.
- Double-decker elevators will rapidly move large numbers of people.
- High-tech elevator technology will optimize elevator traffic flow, reducing waiting times and energy consumption.
The Ciel’s combination of modern technology and human creativity reminds us that great, wondrous things are possible — even on a tiny little patch of desert sand.
Wind Engineering:
- Extensive wind tunnel testing and computational fluid dynamics (CFD) analysis were conducted to optimize the building’s shape and structural design to reduce wind-induced vibrations and sway. These tests helped engineers understand the building’s behavior under different wind directions and speeds.
Logistics and Construction Challenges
The construction of the Ciel Tower was a logistical tour de force. Coordinating the movement of thousands of workers, tons of materials and specialized equipment required meticulous planning and execution — especially in tight quarters with limited access.
The Ciel Tower’s success depended on:
- Digital Construction: The use of BIM, digital twins and other digital technologies for project planning, coordination and execution contributed to the Ciel’s success.
- Modular Construction and Prefabrication: Off-site fabrication of building components improved quality control, reduced construction time and minimized waste.
- Safety Management: Implementing robust safety protocols and procedures ensured the well-being of workers on a tight high-rise construction site.
- Supply Chain Management: Streamlining and planning the supply chain ensured the timely delivery of materials, which was crucial for maintaining project schedules, particularly on a site with very little available space.
- Vertical Logistics: Moving materials and personnel vertically in a project of this scale required specialized equipment and planning. High-capacity tower cranes and material hoists were used.
Sustainability and Innovation: Building for the Future
The Ciel Tower is not just about height. It’s also about sustainability. The building incorporates a range of energy-efficient features, including high-performance glazing, intelligent building management systems, and water conservation measures.
The goal was to minimize the building’s environmental footprint and create a comfortable and healthy environment for its occupants. To achieve this, Ciel focused on:
The use of high-strength steel allowed for slender structural elements, reduced material consumption and maximized usable floor space.
- Sustainable Materials: The use of recycled and locally sourced materials reduced the environmental impact of construction.
- Energy Efficiency: Implementing active and passive energy-saving strategies — such as natural ventilation and solar energy — significantly reduces building energy consumption.
In addition, the Ciel has incorporated a multilevel indoor atrium, about 985 feet (300m) tall. This vertical stack of greenery and trees naturally provides improved air quality while blending luxury living with nature.
- Water Conservation: Water-efficient fixtures and rainwater harvesting systems help reduce water usage.
Lessons Learned and Future Implications
The Ciel Tower represents a significant milestone in the evolution of high-rise construction. It showcases the power of innovation, collaboration and technological advancement in the AEC industry.
By studying the design, engineering and construction of this iconic project, professionals can gain valuable insights into the future of tall building design and construction.
The Ciel Tower serves as a powerful reminder that:
- The value of collaboration should never be underestimated. Architects, engineers, contractors and other stakeholders must work together seamlessly to achieve project success.
- Technology is transforming the AEC industry. Digital tools and technologies enable us to design, build and operate buildings more efficiently and sustainably.
- Innovation is essential. Pushing the boundaries of what’s possible requires a willingness to experiment and explore new ideas.
- Tall buildings are still evolving, and the lessons learned from this project will influence future generations of super-tall structures.
Notes from the Top Floor
At an estimated cost of $544 million, the Ciel Tower rises into the Dubai skyline as a testament to human ingenuity and a beacon of inspiration for the AEC industry.
It’s a reminder that with vision, collaboration and technological prowess, we can reach for the sky and achieve architectural marvels that redefine our urban landscapes.
Moving materials and personnel vertically in a project of this scale required specialized equipment and planning.
The Ciel’s combination of modern technology and human creativity reminds us that great, wondrous things are possible — even on a tiny little patch of desert sand.
